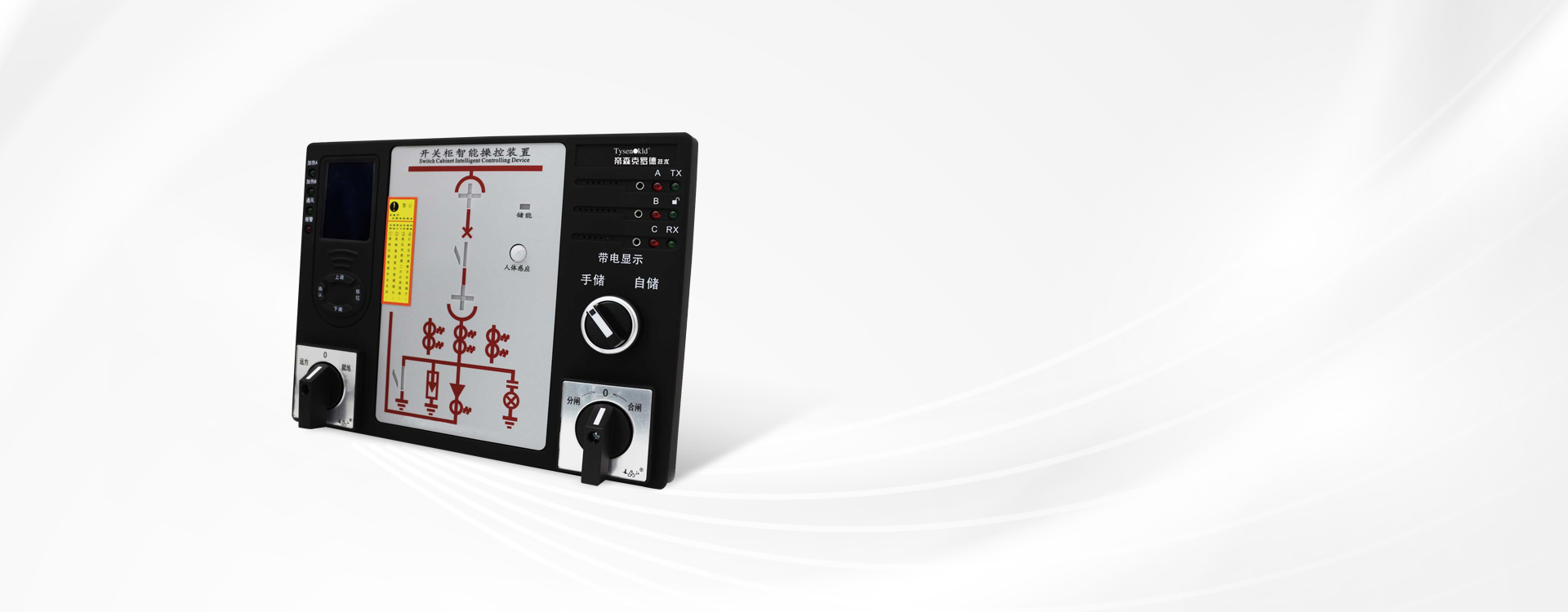

NPM10 Series

Intelligent Control Equipment

Intelligent Fast Safe Comprehensive

PRODUCT OVERVIEW

NPM10 series product is a new type of powerful and diversified intelligent analog dynamic indication equipment designed for the control requirements of power switchgear. The product is suitable for 3-35KV indoor switchgear, middle-placed switchgear, handcart switchgear, fixed switchgear, ring network switchgear and other switchgears. It can replace the current primary circuit simulation, live display, automatic heating and dehumidification controller, which is a product that integrates several of functions, such as circuit breaker opening and closing status indication, energy storage indication, grounding switch indication, position indication and RS485 communication interface, etc.

PRODUCT CHARACTERITICS

Accurate judgment and quick feedback

The front end of the product can be configured with an isolation switch or its own isolation function to ensure that there are obvious line disconnection points to protect personal safety during maintenance.

Strong safety, reliability and stability

Equipped with the human body sensor cabinet lighting function, voice mistake proof prompt function, heating and load disconnection alarm function.

Powerful function, flexible customization

Adopts industrial-grade electronic components with unique anti-interference technology, which can provide highly customized service to find the most suitable product for each project.

High degree of intelligence

Designed in an integrated circuit with an advanced processing unit and digital sensor technology. Not only can it locally monitor the operation status of the high-voltage switchgear in real time, but also upload the data to the monitoring system through network technology, which helps the system to analyze the trend of various data of the switchgear, detect potential faults in time, and facilitate the intelligent development of the substation and distribution network.

Technical Parameters

Function model NMP10-KG NMP10-KS NMP10-KY
Dynamic analog diagram ■ ■ ■
Voice prompt ■ ■ ■
Live display and lock ■ ■ ■
Electric testing and phase verification □ □ □
Temperature and humidity fixed monitoring ■ —— ——
Temperature and humidity digital display —— ■ ——
Temperature and humidity LCD display —— —— ■
Opening and closing change-over switch ■ ■ ■
Local-remote change-over switch ■ ■ ■
Manual energy storage change-over switch ■ ■ ■
Lighting switch in switchgear ■ ■ ——
Pre-opening and pre-closing indication —— ■ ■
Integrity indication of opening and closing circuit —— —— ■
Voltage value display of opening and closing circuit —— —— ■
Measurement display of main circuit current, voltage, power and other electrical parameters —— —— □(Alternative)
Online temperature measurement of contacts and cable joints —— ——
Human body sensor probe □ □ ■
RS485 communication ■ ■ ■
Load disconnection alarm ■ ■ ■
Hole size 220x165mm 220x165mm 220x165mm

Note:■ Standard configuration、□ Optional configuration、— Non-supported configuration

Selection table

NMP10 K Y Additional functions
Product code Product category Display mode Additional functions
NMP10：
Switchgear Indication and Manipulation Equipment		 K：witchgear intelligent control device
Z：Switch status analog indicator		 S：Digital display
Y：LCD display
G：Without display		 D：Electric testing and phase verification
P：Wireless temperature measurement
C0：Data measurement
F：Pre-opening and pre-closing indication
S：Self-testing
B：Independent locking power supply
C：Independent locking output
W：Over-temperature alarm
T：Over-humidity alarm
Z1：DC opening measurement
Z2：DC closing measurement
M：Analog output
None：no addtional function

Technical Parameters


  • Dynamic analog diagram：Standard configuration

    Voice prompt：Standard configuration

    Live display and lock：Standard configuration

    Electric testing and phase verification：Optional configuration

    Temperature and humidity fixed monitoring：Standard configuration

    Temperature and humidity digital display ：None

    Temperature and humidity LCD display：None

    Opening and closing change-over switch：Standard configuration

    Local-remote change-over switch：Standard configuration

    Manual energy storage change-over switch：Standard configuration

    Lighting switch in switchgear：Standard configuration

    Pre-opening and pre-closing indication：None

    Integrity indication of opening and closing circuit：None

    Voltage value display of opening and closing circuit：None

    Measurement display of main circuit current, voltage, power and other electrical parameters ：None

    Online temperature measurement of contacts and cable joints：None

    Human body sensor probe：Optional configuration

    RS485 communication：Standard configuration

    Load disconnection alarm：Standard configuration

    Hole size：220x165mm

  • Dynamic analog diagram：Standard configuration

    Voice prompt：Standard configuration

    Live display and lock：Standard configuration

    Electric testing and phase verification：Optional configuration

    Temperature and humidity fixed monitoring：None

    Temperature and humidity digital display ：Standard configuration

    Temperature and humidity LCD display：None

    Opening and closing change-over switch：Standard configuration

    Local-remote change-over switch：Standard configuration

    Manual energy storage change-over switch：Standard configuration

    Lighting switch in switchgear：Standard configuration

    Pre-opening and pre-closing indication：Standard configuration

    Integrity indication of opening and closing circuit：None

    Voltage value display of opening and closing circuit：None

    Measurement display of main circuit current, voltage, power and other electrical parameters ：None

    Online temperature measurement of contacts and cable joints：None

    Human body sensor probe：Optional configuration

    RS485 communication：Standard configuration

    Load disconnection alarm：Standard configuration

    Hole size：220x165mm

  • Dynamic analog diagram：Standard configuration

    Voice prompt：Standard configuration

    Live display and lock：Standard configuration

    Electric testing and phase verification：Optional configuration

    Temperature and humidity fixed monitoring：None

    Temperature and humidity digital display ：None

    Temperature and humidity LCD display：Standard configuration

    Opening and closing change-over switch：Standard configuration

    Local-remote change-over switch：Standard configuration

    Manual energy storage change-over switch：Standard configuration

    Lighting switch in switchgear：None

    Pre-opening and pre-closing indication：Standard configuration

    Integrity indication of opening and closing circuit：Standard configuration

    Voltage value display of opening and closing circuit：Standard configuration

    Measurement display of main circuit current, voltage, power and other electrical parameters ：Optional configuration(Alternative)

    Online temperature measurement of contacts and cable joints：Optional configuration(Alternative)

    Human body sensor probe：Standard configuration

    RS485 communication：Standard configuration

    Load disconnection alarm：Standard configuration

    Hole size：220x165mm

注：■Standard configuration、□ Optional configuration、— Non-supported configuration

Selection table


  • Product code ：NMP10:Switchgear Indication and Manipulation Equipment

    Product category：K:Switchgear intelligent control device、Z:Switch status analog indicator

    Display mode：S:Digital display、Y:LCD display、G:Without display

    Additional features：D:Electric testing and phase verification、P:Wireless temperature measurement、C0:Data measurement、F:Pre-opening and pre-closing indication、S:Self-testing、B:Independent locking power supply、C:Independent locking output、W:Over-temperature alarm、T:Over-humidity alarm、Z1:DC opening measurement、Z2:DC closing measurement 、M:Analog output、None:no addtional function
