NPM10 Series

Switch Status Analog Indicator

Intelligent Fast Safe Comprehensive

PRODUCT OVERVIEW

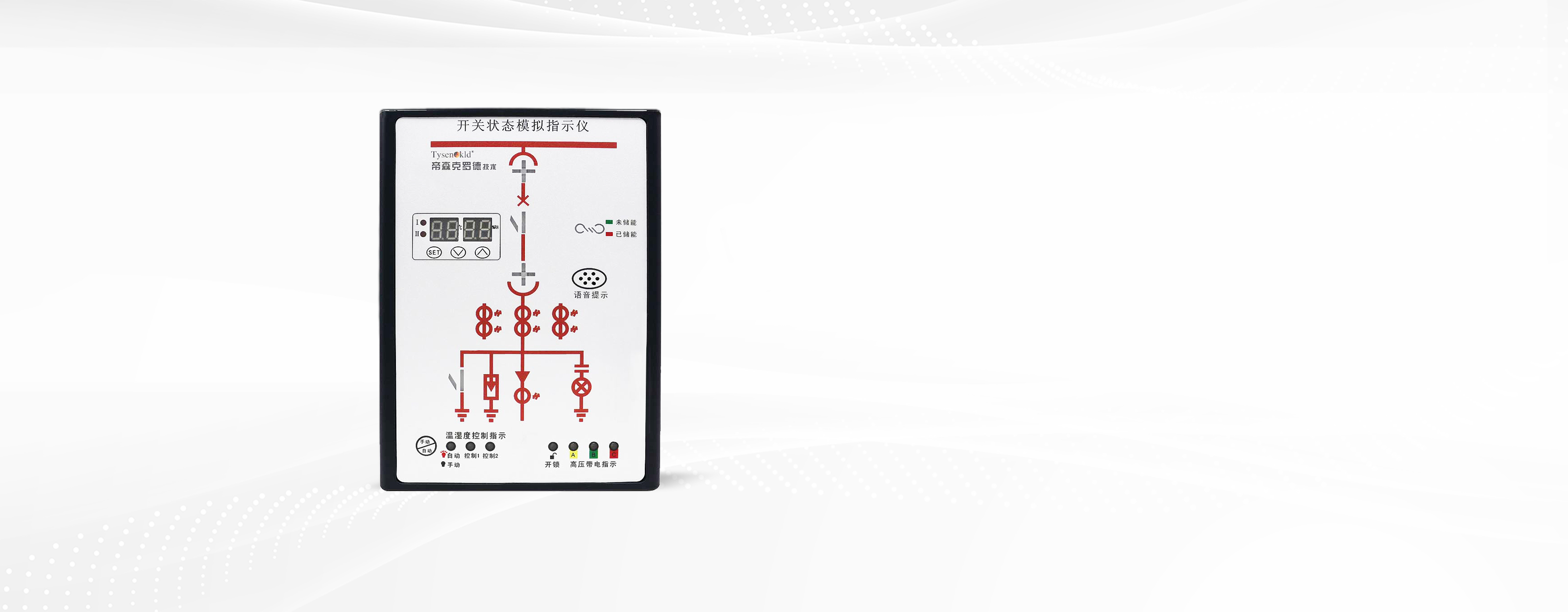

NPM10 series switch status indicator is a new type of multi-functional, intelligent, and dynamic analog indicator device developed and designed according to the current technological development of medium-voltage system switchgear. It integrates the primary circuit analog diagram, switch status, circuit breaker position, grounding switch position, spring energy storage status, high-voltage live indication, high-voltage live locking, and automatic (manual) heating and dehumidifying control, temperature control and other multi-functions. It is equipped in the switchgear by adopting the integrated structure, which simplifies the design of switchgear's panel structure, beautifies switchgear’s panel layout, and improves the indication function and safety of the switching status.

PRODUCT CHARACTERITICS

  • ●   It has the functions of dynamic primary analog diagram, live display and lock, temperature and humidity control.
  • ●   Supports human body sensing, disconnection alarm, voice mistake proof prompt and other functions.
  • ●   It has RS485 communication interface and supports Modbus-RTU communication protocol.
Technical Parameters

Function model NPM10-ZG NPM10-ZS
Dynamic analog diagram ■ ■
Voice mistake proof prompt —— ■
Live display and lock ■ ■
Electric testing and phase verification □ □
Temperature and humidity fixed control ■ ■
Temperature and humidity digital display and control —— ■
RS485 communication ■ ■
Disconnection alarm —— ■
Hole size 119x179mm 130x195mm

Note: If functions of fault power failure, over-temperature or over-humidity alarm function are required, please select the electric testing and phase verification function.■     Standard configuration、  □   Optional configuration、  —  Non-supported configuration

Selection table

NMP10 K Y Additional functions
Product code Product category Display mode Additional functions
NMP10：
Switchgear Indication and Manipulation Equipment		 K：witchgear intelligent control device
Z：Switch status analog indicator		 S：Digital display
Y：LCD display
G：Without display		 D：Electric testing and phase verification
P：Wireless temperature measurement
C0：Data measurement
F：Pre-opening and pre-closing indication
S：Self-testing
B：Independent locking power supply
C：Independent locking output
W：Over-temperature alarm
T：Over-humidity alarm
Z1：DC opening measurement
Z2：DC closing measurement
M：Analog output
None：no addtional function

Technical Parameters


  • Dynamic analog diagram：Standard configuration

    Voice mistake proof prompt：None

    Live display and lock：Standard configuration

    Electric testing and phase verification：Optional configuration

    Temperature and humidity fixed control：Standard configuration

    Temperature and humidity digital display and control：None

    RS485 communication：Standard configuration

    Disconnection alarm：None

    Hole size：119x179mm

  • Dynamic analog diagram：Standard configuration

    Voice mistake proof prompt：Standard configuration

    Live display and lock：Standard configuration

    Electric testing and phase verification：Optional configuration

    Temperature and humidity fixed control：Standard configuration

    Temperature and humidity digital display and control：Standard configuration

    RS485 communication：Standard configuration

    Disconnection alarm：Standard configuration

    Hole size：130x195mm

Note: If functions of fault power failure, over-temperature or over-humidity alarm function are required, please select the electric testing and phase verification function. ■ Standard configuration 、 □ Optional configuration、 — Non-supported configuration

Selection table


  • Product code：NMP10: Switchgear Indication and Manipulation Equipment

    Product category： K: Switchgear intelligent control device、 Z: Switch status ana

    Display mode：S: Digital display Y: LCD display G: Without display

    附加Function：D: Electric testing and phase verification ；P: Wireless temperature measurement；C0: Data measurement；F: Pre-opening and pre-closing indication ；S: Self-testing；B: Independent locking power supply ；C: Independent locking output；W: Over-temperature alarm；T: Over-humidity alarm；Z1: DC opening measurement；Z2: DC closing measurement；M: Analog output ；None: no addtional function
