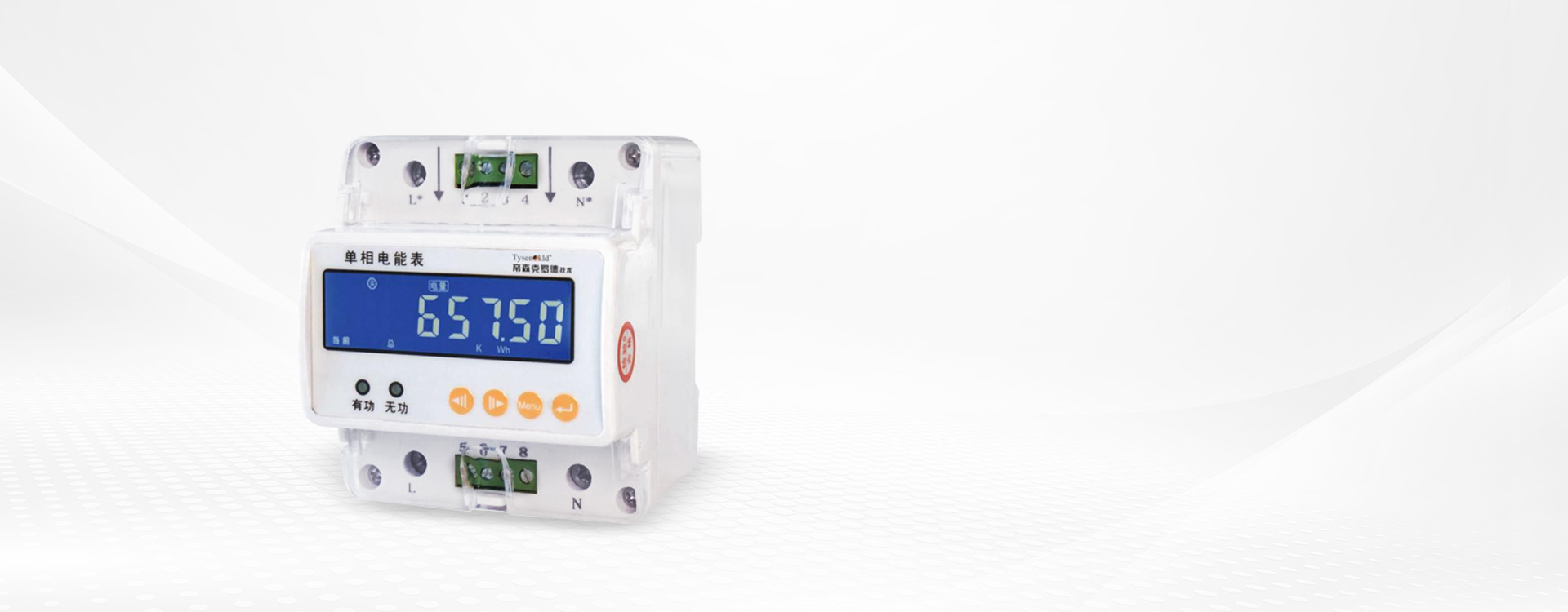

MMINI60 Series
DIN Rail Meter
(Electric energy, Prepaid, Fee Control)
Intelligent
Efficient
Safe
Comprehensive
PRODUCT OVERVIEW
MINI60 series DIN rail meter adopts specialized large-scale integrated circuits and SMT technology for electric energy metering, as well as advanced three-proof (waterproof, dustproof, corrosion proof) circuit boards, featuring high reliability, strong anti-interference ability, and high-definition LCD display in segments. Its parameters such as rate period can be set and has the function of electric energy impulse output; it can be uploaded to the energy consumption system through RS485 communication interface, which greatly facilitates the automatic management of electric power consumption. It is widely used in commercial buildings, residential compounds and infrastructure, realizing intelligent control and management.
PRODUCT CHARACTERITICS
Space saving
Guide rail design and modular structure make the energy meter compact and save the space.
Accurate metering
The electric energy meter is able to accurately measure the current and voltage, and then calculate the amount of energy consumed, ensuring an accurate record of electricity consumption.
Multiple functions
In addition to basic electric energy measurement, the meter is also equipped with demand measurement, data recording, remote communication and other functions. It supports a variety of communication protocols for easy integration into the smart grid and automatic building systems.
Convenient installation
Easy to install and replace on electrical distribution boards without additional brackets or complicated installation procedures.
Technical Parameters
MINI60 Series Electric Energy DIN Rail Meter
| Item | Parameter | ||
| Model | MINI602X-2P（4P） | MINI603(4)X-7P | |
| Accuracy class | Class B for active power, Class 2.0 for reactive power | ||
| Display mode | LCD display | ||
| Input voltage | Network | Single-phase | Three-phase four-wire：3*220V/380V、3*57.7/100V； Three-phase three-wire：3*380V、3*100V |
| Rated value | AC 220V、AC100V | AC 380V、AC220V、AC100V | |
| Overvoltage | 1.2 times of rated value (continuous), 2 times of rated value/1 sec | ||
| power dissipation | ＜0.1VA (per phase) | ||
| Impedance | ＞1.72MΩ | ||
| Input current | Specification | 2P：0.25-0.5(30)A、0.5-1(60)A | 0.015-0.075(6)A、0.25-0.5(20)A、0.5-1(40)A、0.75-1(60)A、1-2(80)A、1-2(100)A |
| 4P：0.015-0.075(6)A、0.25-0.5(20)A、0.5-1(40)A、1-2(80)A、1-2(100)A | |||
| Overcurrent | Continuous: 1.2 times of rated value, Instantaneous: 2 times of rated value/10 secs | ||
| Impedance | ＜20mΩ (per phase) | ||
| Frequency | 50Hz or 60Hz | ||
| Electric energy | Positive active energy | Four-quadrant energy metering | |
| Operating voltage | Normal operating voltage range：0.9~1.1Un | ||
| Power consumption | ＜5VA | ||
| Function module | Electric energy impulse | Impulse width: 80ms±20ms Optical coupler isolation, open collector output | |
| Communication interface (optional) | RS485 interface, Modbus-RTU protocol or DL/T645-2007 protocol | ||
| Operating environment | Normal operating temperature：-10℃~+55℃，Working temperature limit：-20℃~+65℃ | ||
| Storage environment | -20℃~+85℃，Relative humidity：≤95% (no condensing) | ||
| Safety | Insulation | Resistance between signal, output terminal and casing＞100MΩ | |
| Withstand voltage | Input and output ＞2kV | ||
| Overall dimensions（W*D*H） | 2P：36*66*90(mm)、4P：76*74*91(mm)、7P：126*74*91(mm) | ||
| Installation method | 35mm standard guide rail mounted | ||
MINI60-Y Series Prepaid DIN Rail Meter
| Item | Parameter | ||
| Model | MINI602X-4P-Y | MINI603X-7P-Y | |
| MINI604X-7P-Y | |||
| Accuracy class | Class B for active power, Class 2.0 for reactive power | ||
| Display mode | LCD display | ||
| Input voltage | Network | Single-phase | Three-phase four-wire |
| Rated value | AC220V、AC100V | AC3*220V/380V | |
| Overvoltage | Continuous: 1.2 times of rated value, Instantaneous: 2 times of rated value/10 secs | ||
| power dissipation | ＜0.1VA (per phase) | ||
| Impedance | ＞1.72MΩ | ||
| Input current | Specification | 0.015-0.075(6)A、0.25-0.5(20)A、0.5-1(40)A、1-2(80)A、1-2(100)A | |
| Overcurrent | Continuous: 1.2 times of rated value, Instantaneous: 2 times of rated value/10 secs | ||
| Impedance | ＜2mΩ (per phase) | ||
| Frequency | 50Hz or 60Hz | ||
| Electricity | Four-quadrant energy metering | ||
| Operating voltage | Normal operating voltage range：0.9~1.1Un | ||
| Power consumption | ＜5VA | ||
| Function module | Electric energy impulse | Impulse width: 80ms±20ms Optical coupler isolation, open collector output | |
| Communication interface (optional) | RS485 interface, Modbus-RTU protocol, DL/T645-2007 protocol for multi-rate function | ||
| Operating environment | Normal operating temperature：-10℃~+55℃，Working temperature limit：-20℃~+65℃ | ||
| Storage environment | -20℃~+85℃，Relative humidity：≤95% (no condensing)） | ||
| Safety | Insulation | Resistance between signal, output terminal and casing＞100MΩ | |
| Withstand voltage | Input and output ＞2kV | ||
| Overall dimensions（W*D*H） | 4P：76*84*94（mm）、7P：126*84*94（mm） | ||
| Installation method | 35mm standard guide rail mounted | ||
MINI60-F Series Fee Control DIN Rail Meter
| Item | Parameter | ||
| Model | MINI602X-4P-F | MINI603(4)X-7P-F | |
| Display mode | LCD display | ||
| Input voltage | Network | Single-phase | Three-phase four-wire |
| Rated value | AC220V | AC3*220V/380V | |
| Input current | Specification | 0.25-0.5(60)A、0.5-1(80)A | 0.015-0.075(6)A、0.25-0.5(40)A、0.5-1(80)A |
| Frequency | 50Hz or 60Hz | ||
| Electricity | Four-quadrant energy metering | ||
| Operating voltage | Normal operating voltage range：0.9~1.1Un；Working voltage range limit：0.7~1.2Un | ||
| Starting current (directly connected) | 0.004lb | 0.004lb directly connected, 0.002lb connected with transformer | |
| Creeping | Hardware anti-creeping logic | ||
| Power consumption(voltage circuit) | ≤5VA | ≤5VA (per phase) | |
| Power consumption(current circuit) | ＜4VA | ＜4VA (per phase) | |
| Function module | Electric energy impulse | Impulse width: 80ms±20ms Optical coupler isolation, open collector output | |
| Communication interface (optional) | RS485 interface, Infrared communication, DL/T645-2007 protocol | ||
| Clock error | ≤0.5s/d | ||
| Operating environment | Normal operating temperature：-10℃~+45℃，Working temperature limit：-20℃~+55℃ | ||
| Storage environment | -25℃~+70℃，Relative humidity：≤95% (no condensing)） | ||
| Number of rates (Multi-rate model only) | 4 | ||
| Number of daily time slots (Multi-rate model only) | 14 | ||
| Number of annual time zones (Multi-rate model only) | 2 | ||
| Mean time between failures | ≥50000h | ||
| Overall dimensions（W*D*H） | 4P：76*76*103（mm）、7P：126*76*103（mm） | ||
| Installation method | 35mm standard guide rail mounted | ||
Selection table
MINI60 Series Electric Energy DIN Rail Meter
| MINI60 | 3 | 1 | 7P |
| Product code | Wiring code | Function code | External dimension code |
| MINI60： DIN rail meter |
2:Single-phase 3: Three-phase directly connected 4:Three-phase connected via CT |
0: Four-quadrant Electric Energy + Communication 1: Multi-function+Communication 2: Multi-function+Multi-rate+Communication |
2P:2-digit width 4P:4-digit width 7P:7-digit width |
Note: Multi-function includes current, voltage, active power, frequency, reactive power, apparent power, power factor, positive active power, positive reactive power.
MINI60-Y Series Prepaid DIN Rail Meter
| MINI60 | 3 | 1 | 7P | Y | H | L |
| Product code | Wiring code | Function code | External dimension code | Product type | Electricity sales mode | Optional functions |
| MINI60： DIN rail meter |
2:Single-phase 3: Three-phase directly connected 4:Three-phase connected via CT |
1: Multi-function+Communication 2: Multi-function+Multi-rate+Communication |
4P:4-digit width 7P:7-digit width |
Y:Prepaid | T:Remote sales K: IC card sales H:Hybrid sales |
L:Malignant load identification function None:No malignant load identification function |
Note: • Multi-function includes current, voltage, active power, frequency, reactive power, apparent power, power factor, positive active energy, positive reactive energy.
• Electricity sales software of prepaid model is free of charge. The standard configuration is 1 card for IC card sales (YK) per meter and hybrid electricity sales (YH) per meter, remote electricity sales (YT) is not equipped with sales card by default (make a request when placing an order)
MINI60-F Series Fee Control DIN Rail Meter
| MINI60 | 3 | 1 | 7P | F |
| Product code | Wiring code | Function code | External dimension code | Electricity sales mode |
| MINI60： DIN rail meter |
2:Single-phase 3: Three-phase directly connected 4:Three-phase connected via CT |
1: Multi-function+Communication 2: Multi-function+Multi-rate+Communication |
4P:4-digit width 7P:7-digit width |
F: Fee control |
Note: • Multi-function includes current, voltage, active power, frequency, reactive power, apparent power, power factor, positive active energy, positive reactive energy.
• Fee control meter complies with DL/T645-2007 protocol
Technical Parameters
MINI60 Series Electric Energy DIN Rail Meter
-
Accuracy class：Class B for active power, Class 2.0 for reactive power
Display mode：LCD display
Input voltage：Network：Single-phase；Rated value：AC 220V、AC100V；Overvoltage：1.2 times of rated value (continuous), 2 times of rated value/1 sec；power dissipation：＜0.1VA (per phase)；Impedance：＞1.72MΩ；
Input current：Specification： 2P：0.25-0.5(30)A、0.5-1(60)A /4P：0.015-0.075(6)A、0.25-0.5(20)A、0.5-1(40)A、1-2(80)A、1-2(100)A； Overcurrent：Continuous: 1.2 times of rated value, Instantaneous: 2 times of rated value/10 secs；Impedance：＜20mΩ (per phase)；
Frequency：50Hz or 60Hz
Electricity：Positive active energy；
Operating voltage：Normal operating voltage range：0.9~1.1Un；
Power consumption＜5VA；
Function module：Electric energy impulse：Impulse width: 80ms±20ms Optical coupler isolation, open collector output； Communication interface (optional)：RS485 interface, Modbus-RTU protocol or DL/T645-2007 protocol；
Operating environment：Normal operating temperature：-10℃~+55℃，Working temperature limit：-20℃~+65℃；
Storage environment：-20℃~+85℃，Relative humidity：≤95% (no condensing)；
Safety：Insulation：Resistance between signal, output terminal and casing＞100MΩ；Withstand voltage： Input and output ＞2kV； Overall dimensions（W*D*H）：2P：36*66*90(mm)、4P：76*74*91(mm)、7P：126*74*91(mm)；
-
Accuracy class：Class B for active power, Class 2.0 for reactive power
Display mode：LCD display
Input voltage：Network：AC 380V、AC220V、AC100V；Rated value：AC 380V、AC220V、AC100V；Overvoltage：1.2 times of rated value (continuous), 2 times of rated value/1 sec；power dissipation：＜0.1VA (per phase)；Impedance：＞1.72MΩ；
Input current：Specification：0.015-0.075(6)A、0.25-0.5(20)A、0.5-1(40)A、0.75-1(60)A、1-2(80)A、1-2(100)A； Overcurrent：Continuous: 1.2 times of rated value, Instantaneous: 2 times of rated value/10 secs；Impedance：＜20mΩ (per phase)；
Frequency：50Hz or 60Hz
Electricity：Four-quadrant energy metering；
Operating voltage：Normal operating voltage range：0.9~1.1Un；
Power consumption＜5VA；
Function module：Electric energy impulse：Impulse width: 80ms±20ms Optical coupler isolation, open collector output； Communication interface (optional)：RS485 interface, Modbus-RTU protocol or DL/T645-2007 protocol；
Operating environment：Normal operating temperature：-10℃~+55℃，Working temperature limit：-20℃~+65℃；
Storage environment：-20℃~+85℃，Relative humidity：≤95% (no condensing)；
Safety：Insulation：Resistance between signal, output terminal and casing＞100MΩ；Withstand voltage： Input and output ＞2kV； Overall dimensions（W*D*H）：2P：36*66*90(mm)、4P：76*74*91(mm)、7P：126*74*91(mm)；
MINI60-Y Series Prepaid DIN Rail Meter
-
Accuracy class：Class B for active power, Class 2.0 for reactive power
Display mode：LCD display
Input voltage：Network：Single-phase；Rated value：AC220V、AC100V；Overvoltage：1.2 times of rated value (continuous), 2 times of rated value/1 sec；power dissipation：＜0.1VA (per phase)；Impedance：＞1.72MΩ；
Input current：Specification：0.015-0.075(6)A、0.25-0.5(20)A、0.5-1(40)A、1-2(80)A、1-2(100)A； Overcurrent：Continuous: 1.2 times of rated value, Instantaneous: 2 times of rated value/10 secs；Impedance：＜20mΩ (per phase)；
Frequency：50Hz or 60Hz
Electricity：Four-quadrant energy metering；
Operating voltage：Normal operating voltage range：0.9~1.1Un；
Power consumption＜5VA；
Function module：Electric energy impulse：Impulse width: 80ms±20ms Optical coupler isolation, open collector output； Communication interface (optional)：RS485 interface, Modbus-RTU protocol, DL/T645-2007 protocol for multi-rate function；
Operating environment：Normal operating temperature：-10℃~+55℃，Working temperature limit：-20℃~+65℃；
Storage environment：-20℃~+85℃，Relative humidity：≤95% (no condensing)）；
Safety：Insulation：Resistance between signal, output terminal and casing＞100MΩ；Withstand voltage： Input and output ＞2kV；
Overall dimensions（W*D*H）：4P：76*84*94（mm）、7P：126*84*94（mm）；
Installation method：35mm standard guide rail mounted；
-
Accuracy class：Class B for active power, Class 2.0 for reactive power
Display mode：LCD display
Input voltage：Network：Three-phase four-wire；Rated value：AC3*220V/380V；Overvoltage：1.2 times of rated value (continuous), 2 times of rated value/1 sec；power dissipation：＜0.1VA (per phase)；Impedance：＞1.72MΩ；
Input current：Specification：0.015-0.075(6)A、0.25-0.5(20)A、0.5-1(40)A、1-2(80)A、1-2(100)A； Overcurrent：Continuous: 1.2 times of rated value, Instantaneous: 2 times of rated value/10 secs；Impedance：＜20mΩ (per phase)；
Frequency：50Hz or 60Hz
Electricity：Four-quadrant energy metering；
Operating voltage：Normal operating voltage range：0.9~1.1Un；
Power consumption＜5VA；
Function module：Electric energy impulse：Impulse width: 80ms±20ms Optical coupler isolation, open collector output； Communication interface (optional)：RS485 interface, Modbus-RTU protocol, DL/T645-2007 protocol for multi-rate function；
Operating environment：Normal operating temperature：-10℃~+55℃，Working temperature limit：-20℃~+65℃；
Storage environment：-20℃~+85℃，Relative humidity：≤95% (no condensing)）；
Safety：Insulation：Resistance between signal, output terminal and casing＞100MΩ；Withstand voltage： Input and output ＞2kV；
Overall dimensions（W*D*H）：4P：76*84*94（mm）、7P：126*84*94（mm）；
Installation method：35mm standard guide rail mounted；
Note: • Multi-function includes current, voltage, active power, frequency, reactive power, apparent power, power factor, positive active energy, positive reactive energy.
• 72 models; the maximum additional function is 4DI/2DO/1M/R/2P.
• When function code A or B is selected, the maximum additional function is 4DI/2DO/1M/R.
•The number of DI can only be selected as 4DI or 8DI, and the number of DO can only be selected as 2DO or 4DO.
MINI60-F Series Fee Control DIN Rail Meter
-
Display mode：LCD display；
Input voltage：Network：Single-phase；Rated value ：AC220V；Specification：0.25-0.5(60)A、0.5-1(80)A；
Input current：Specification：0.25-0.5(60)A、0.5-1(80)A；
Frequency ：50Hz or 60Hz；
Electricity：Four-quadrant energy metering；
Operating voltage：Normal operating voltage range：0.9~1.1Un；Working voltage range limit：0.7~1.2Un；
Starting current (directly connected) ：0.004lb；
Creeping：Hardware anti-creeping logic；
Power consumption(voltage circuit)：≤5VA；
Power consumption(current circuit)：＜4VA；
Function module：Electric energy impulse：Impulse width: 80ms±20ms Optical coupler isolation, open collector output；Communication interface (optional)：RS485 interface, Infrared communication, DL/T645-2007 protocol；
Clock error：≤0.5s/d；
Operating environment：Normal operating temperature：-10℃~+45℃，Working temperature limit：-20℃~+55℃；
Storage environment：-25℃~+70℃，Relative humidity：≤95% (no condensing)）；
Number of rates (Multi-rate model only)：4；
Number of daily time slots (Multi-rate model only)：14；
Number of annual time zones (Multi-rate model only)：2；
Mean time between failures：≥50000h；
Overall dimensions（W*D*H）：4P：76*76*103（mm）、7P：126*76*103（mm）；
Installation method：35mm standard guide rail mounted；
-
Display mode：LCD display；
Input voltage：Network：Three-phase four-wire；Rated value ：AC3*220V/380V；Specification：0.015-0.075(6)A、0.25-0.5(40)A、0.5-1(80)A；
Input current：Specification：0.25-0.5(60)A、0.5-1(80)A；
Frequency ：50Hz or 60Hz；
Electricity：Four-quadrant energy metering；
Operating voltage：Normal operating voltage range：0.9~1.1Un；Working voltage range limit：0.7~1.2Un；
Starting current (directly connected) ：0.004lb directly connected, 0.002lb connected with transformer；
Creeping：Hardware anti-creeping logic；
Power consumption(voltage circuit)：≤5VA (per phase)；
Power consumption(current circuit)：＜4VA (per phase)；
Function module：Electric energy impulse：Impulse width: 80ms±20ms Optical coupler isolation, open collector output；Communication interface (optional)：RS485 interface, Infrared communication, DL/T645-2007 protocol；
Clock error：≤0.5s/d；
Operating environment：Normal operating temperature：-10℃~+45℃，Working temperature limit：-20℃~+55℃；
Storage environment：-25℃~+70℃，Relative humidity：≤95% (no condensing)）；
Number of rates (Multi-rate model only)：4；
Number of daily time slots (Multi-rate model only)：14；
Number of annual time zones (Multi-rate model only)：2；
Mean time between failures：≥50000h；
Overall dimensions（W*D*H）：4P：76*76*103（mm）、7P：126*76*103（mm）；
Installation method：35mm standard guide rail mounted；
Selection table
-
Product code ：MINI60：DIN rail meter
Wiring code：2:Single-phase；3: Three-phase directly connected ；4:Three-phase connected via CT
Function code：0: Four-quadrant Electric Energy + Communication；1: Multi-function+Communication；2: Multi-function+Multi-rate+Communication；
External dimension code：2P:2-digit width ；4P:4-digit width ；7P:7-digit width ；
Note: Multi-function includes current, voltage, active power, frequency, reactive power, apparent power, power factor, positive active power, positive reactive power.
-
Product code ：MINI60：DIN rail meter
Wiring code：2:Single-phase；3: Three-phase directly connected ；4:Three-phase connected via CT
Function code：1: Multi-function+Communication；2: Multi-function+Multi-rate+Communication；
External dimension code：4P:4-digit width ；7P:7-digit width ；
Product type：Y:Prepaid
Electricity sales mode：T:Remote sales；K: IC card sales；H:Hybrid sales
Optional functions：L:Malignant load identification function；None:No malignant load identification function；
Note: Multi-function includes current, voltage, active power, frequency, reactive power, apparent power, power factor, positive active power, positive reactive power.
• Electricity sales software of prepaid model is free of charge. The standard configuration is 1 card for IC card sales (YK) per meter and hybrid electricity sales (YH) per meter, remote electricity sales (YT) is not equipped with sales card by default (make a request when placing an order)
-
Product code ：MINI60：DIN rail meter
Wiring code：2:Single-phase；3: Three-phase directly connected ；4:Three-phase connected via CT
Function code：1: Multi-function+Communication；2: Multi-function+Multi-rate+Communication；
External dimension code：4P:4-digit width ；7P:7-digit width ；
Electricity sales mode：F: Fee control
Note: • Multi-function includes current, voltage, active power, frequency, reactive power, apparent power, power factor, positive active energy, positive reactive energy.
• Fee control meter complies with DL/T645-2007 protocol
TYSEN-SAE Electrical Co., Ltd. Jiangsu ICP File No.16025679
